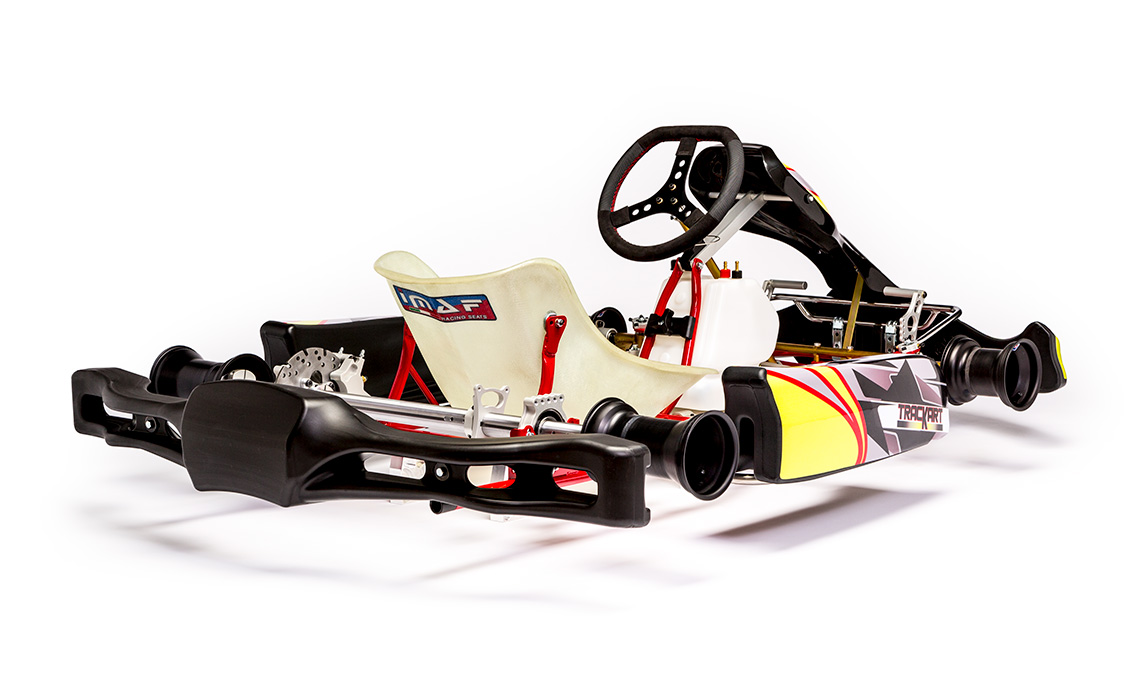

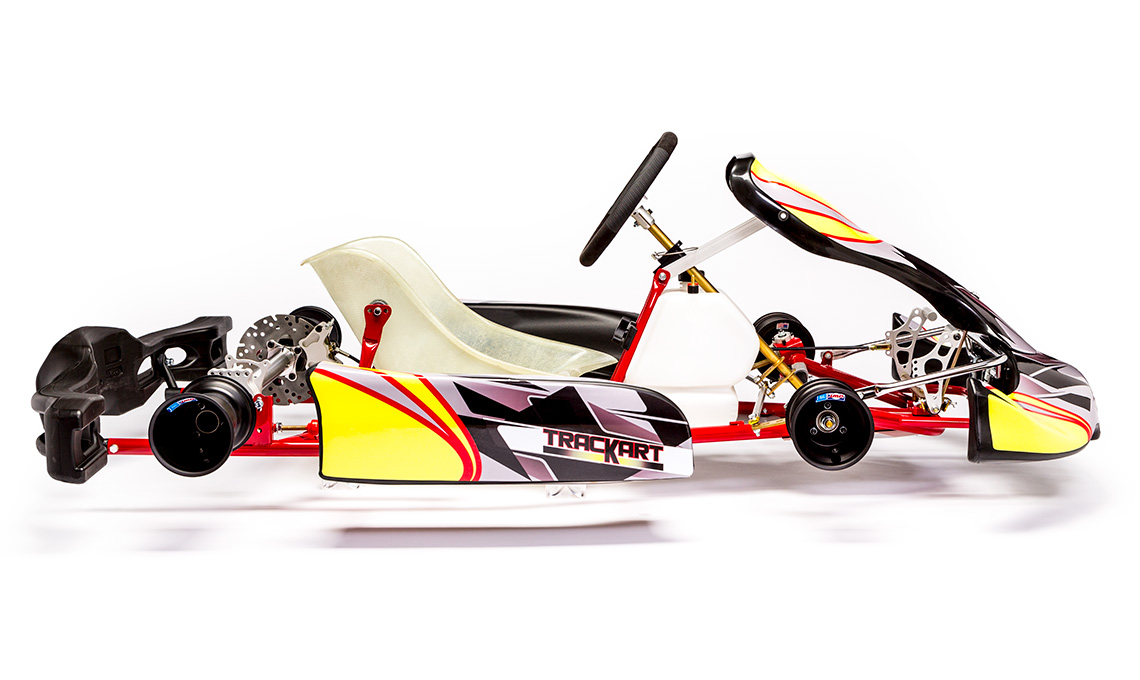

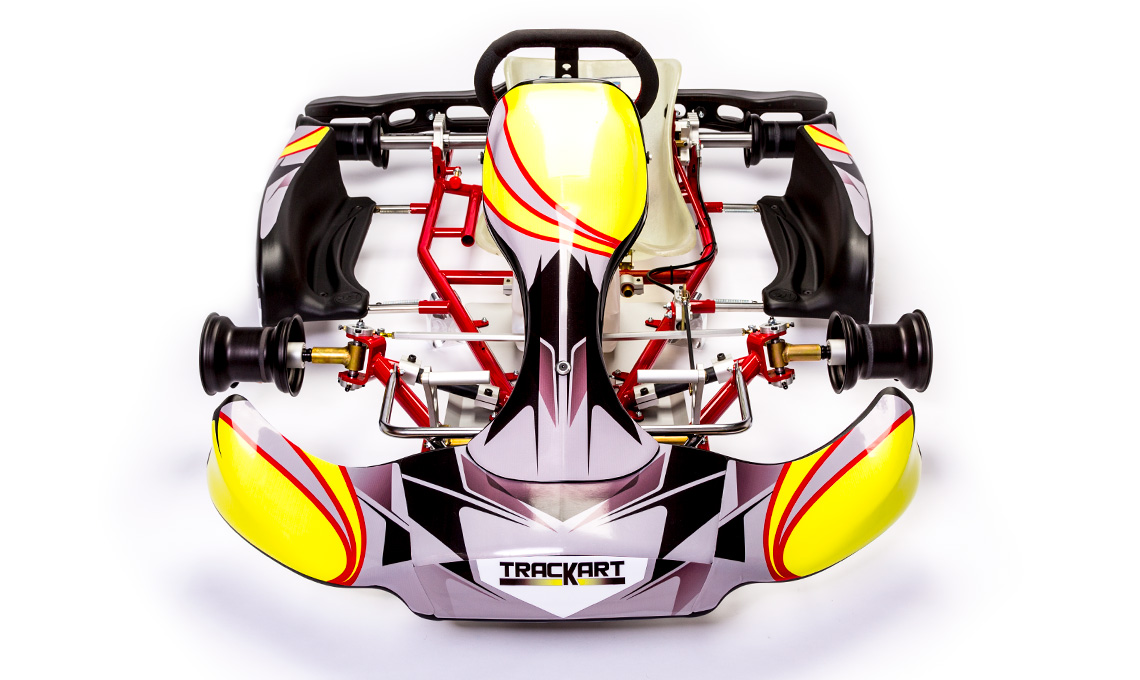

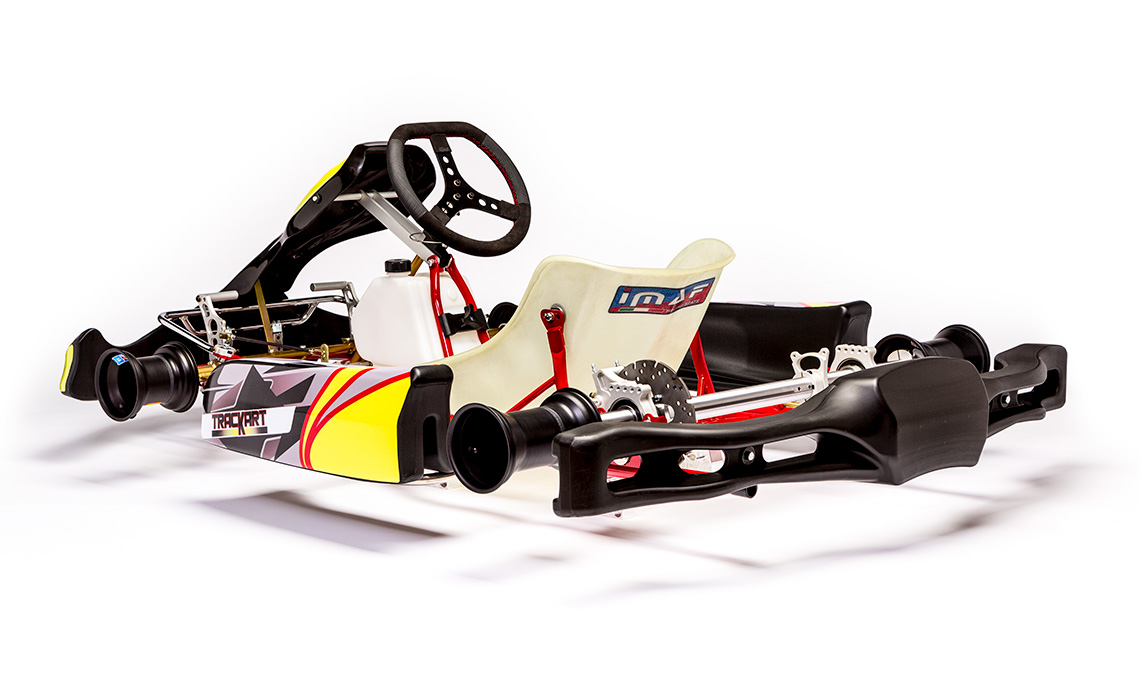

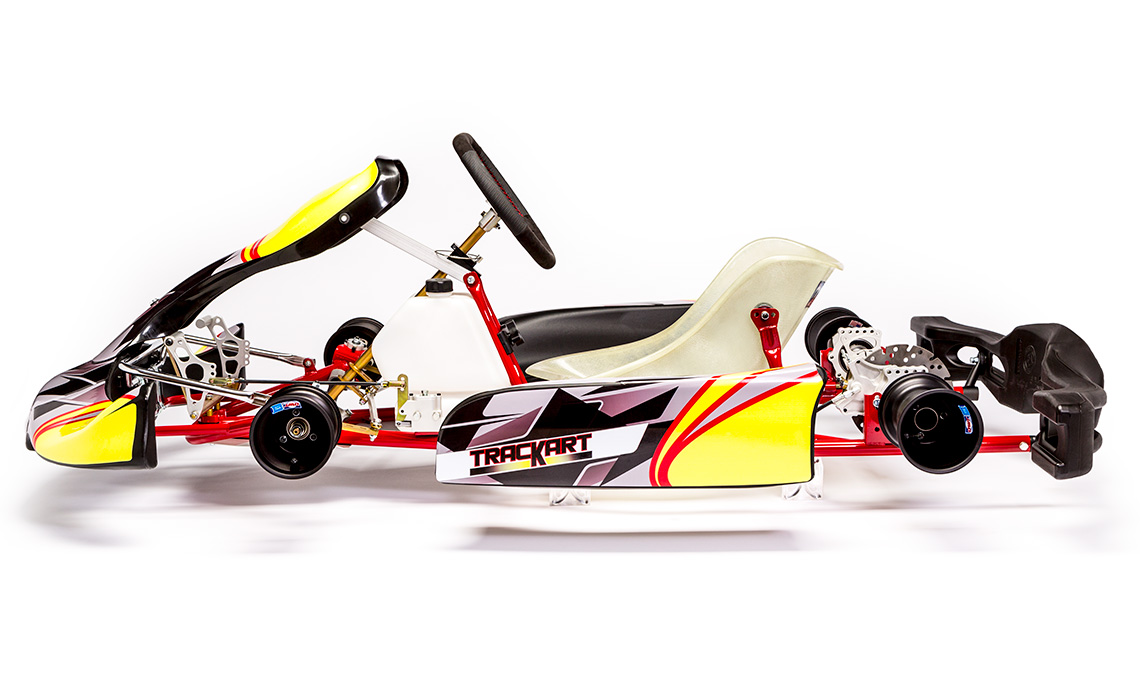

HammerHead 4C (Shown)
- Designed and Made in the USA for the LO 206 Class
- 30mm True Metric Tubing
- High Quality Aluminum Components
- 17mm Front Spindles
- 40mm Rear Axle
- Angled Steering Hub
- 8.5 Liter Fuel Tank
- Aluminum Wheels
- Lightweight, 144 lbs. Race Ready with LO 206 Engine Package (no fuel)

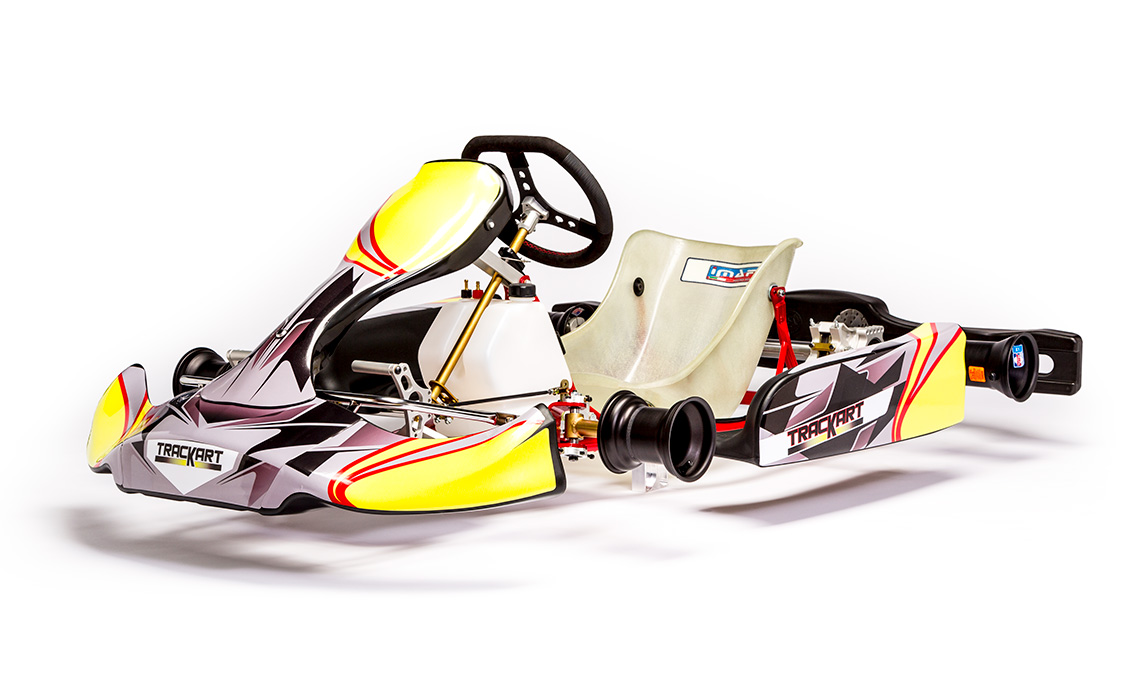

HammerHead 2C
- Designed and Made in the USA for 100cc and 125cc Tag classes
- 30mm True Metric Tubing
- High Quality Aluminum and Magnesium Components
- 25mm Front Spindles
- 50mm Rear Axle
- Angled Steering Hub
- 8.5 Liter Fuel Tank
01. Rear End

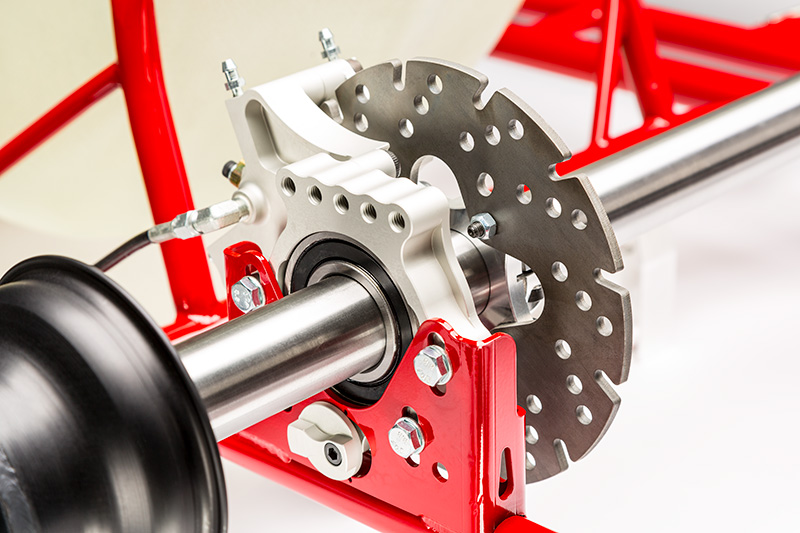

Rear Axle:
- CAM Style Rear Ride Height Adjustment
- 9mm Up or Down Ride Height Adjustment
- Setup Block for Setting Ride Height

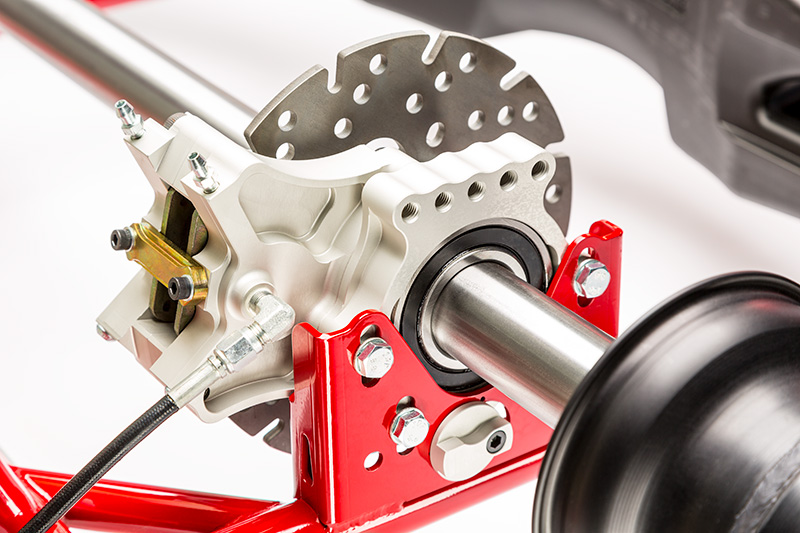

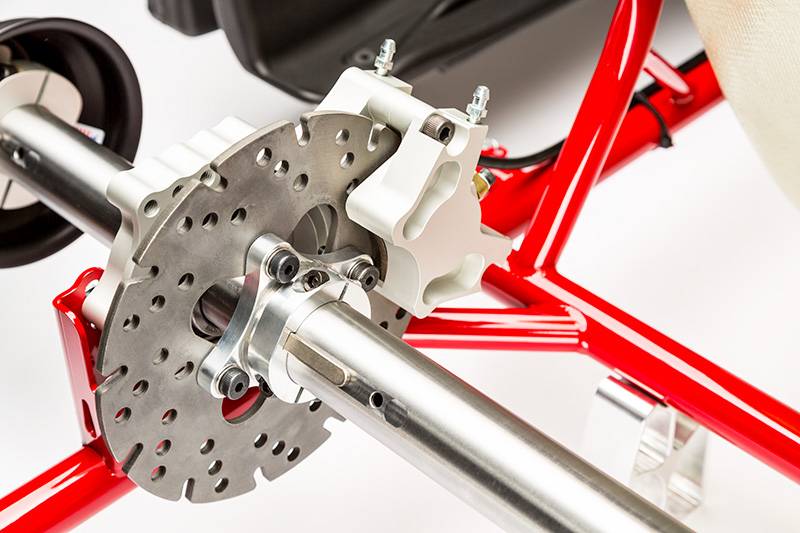

Brake Caliper/ Rotor:
- 190mm Floating Rotor
- Self-Adjusting Brake Pads
- Superior Pad Compound for Great Performance and Longevity

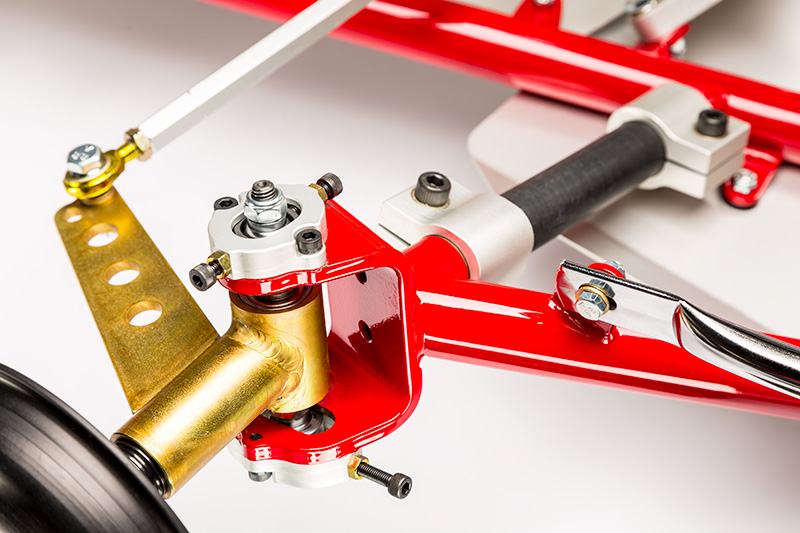

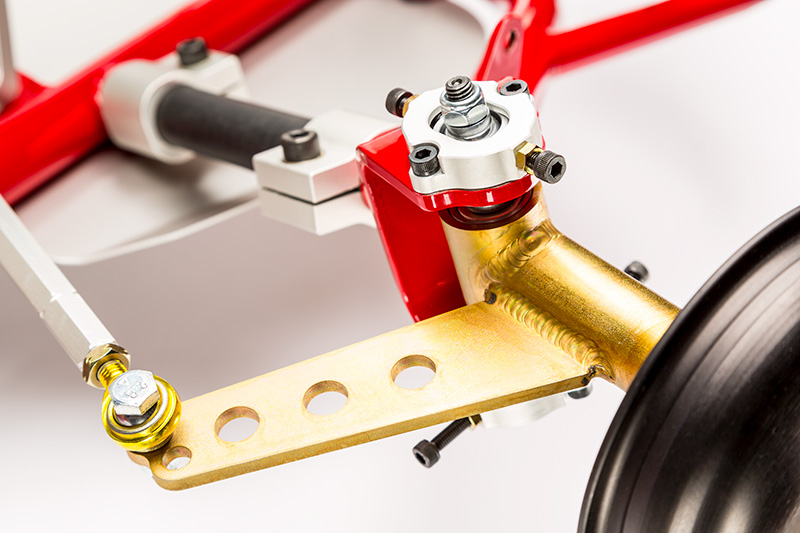

02. Front End

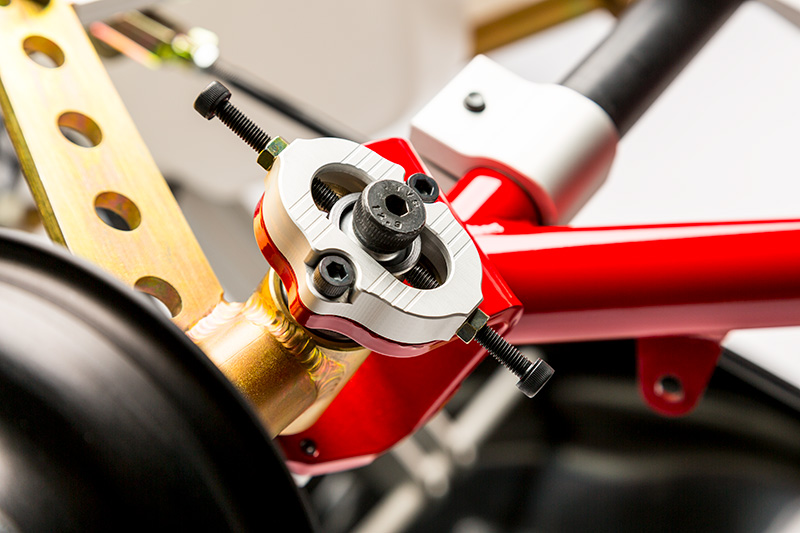

- Independent Camber & Caster
- 8 Degrees +/- From Center Caster Adjustment
- Virtually any Camber Setting
- 9mm Up or Down Ride Height Adjustment
- Adjustable Steering Ackerman

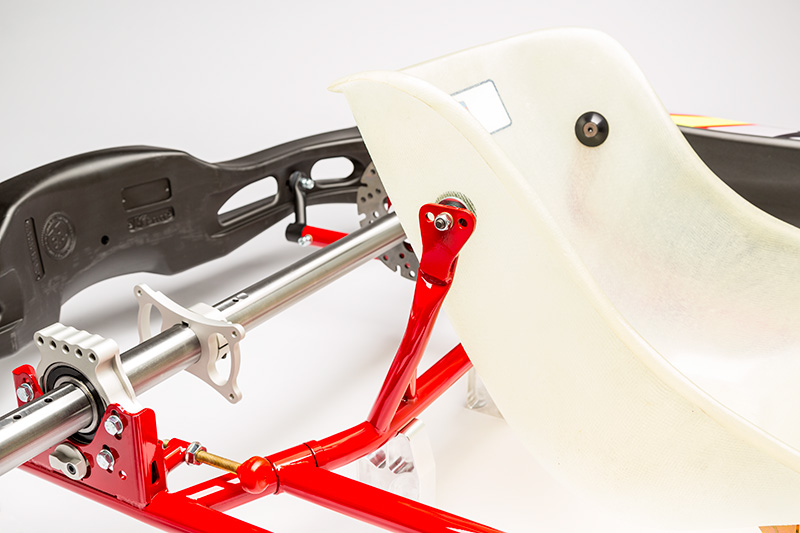

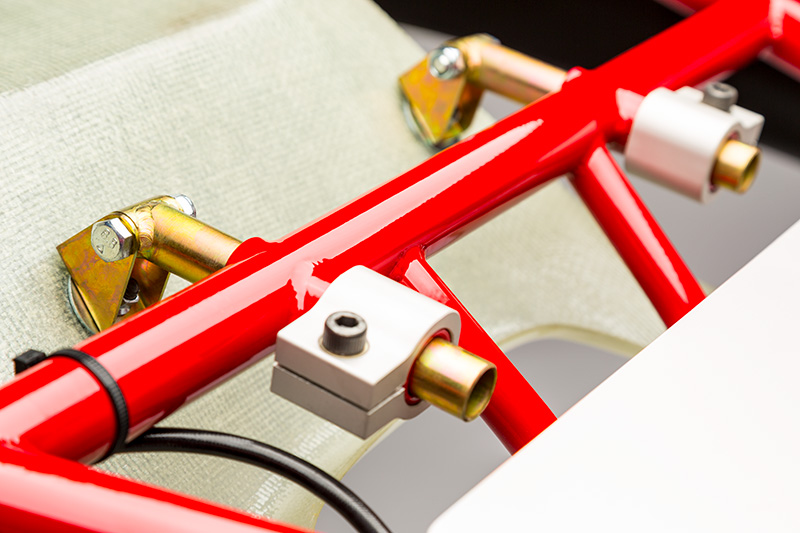

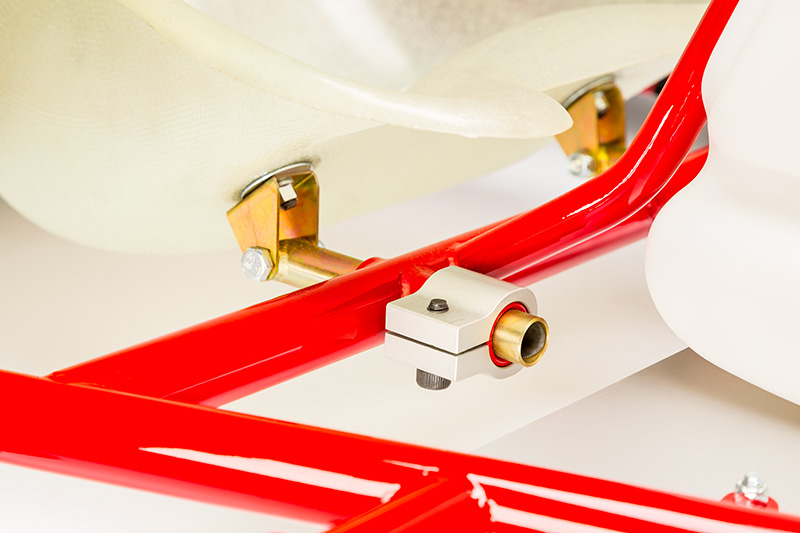

03. Seat
- Easily Adjustable
- Lower Mounts Accommodate any Seat Shape
- 3 Position Seat Movement Range
04. Controls

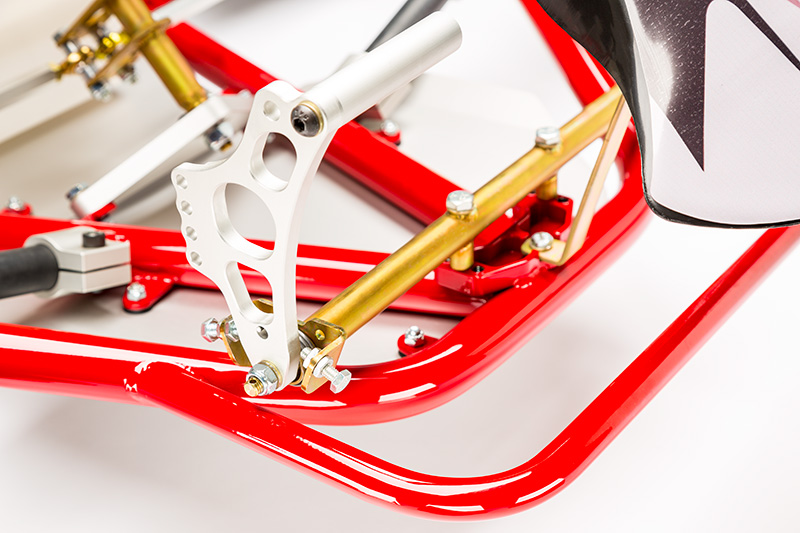

Pedals:
- Multi Position Pedal Mounting with Built in Heel Rest
- Module Design to Accommodate any Leg Length

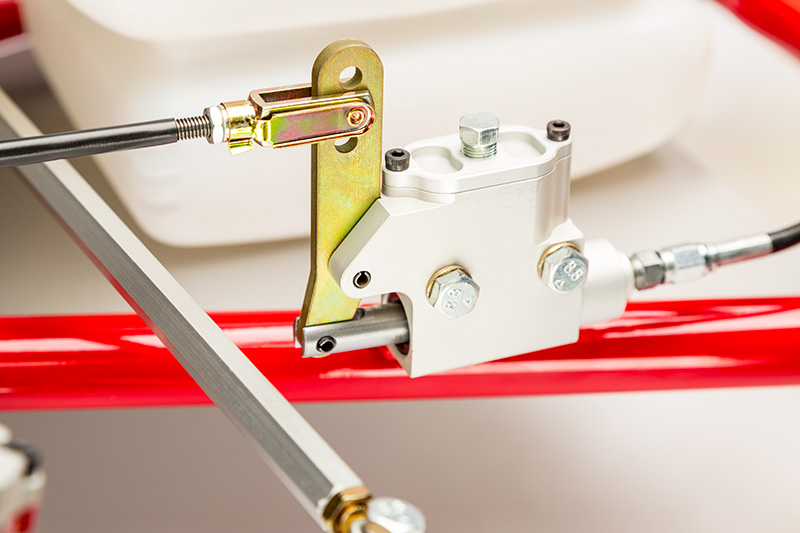

Master Cylinder:
- Multi Position Brake Ratio to Accommodate any Driving Style
- Lightweight Compact Design
- DOT 4 Fluid

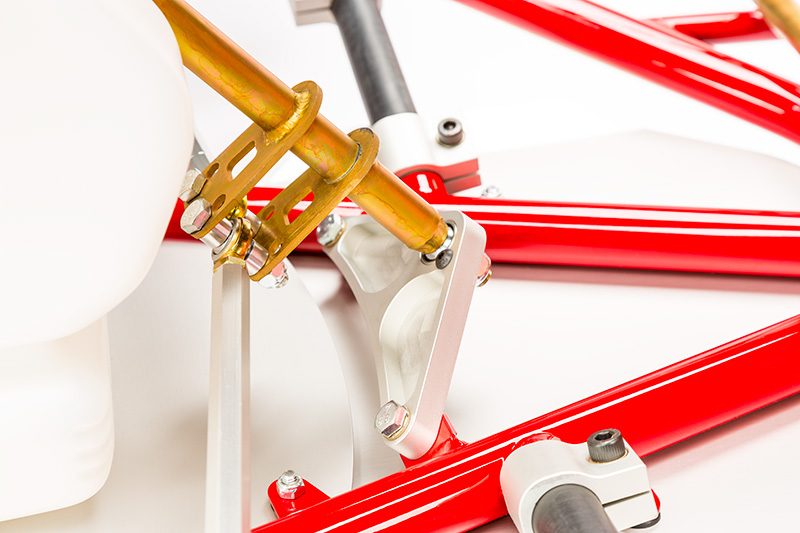

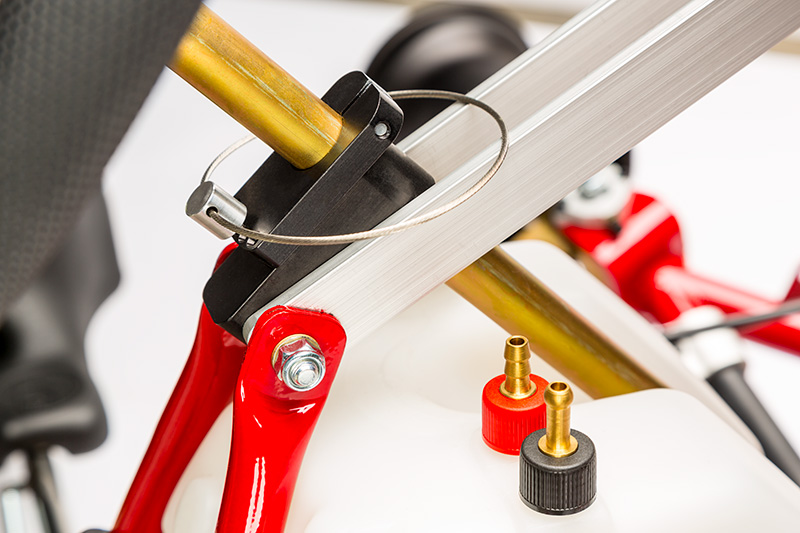

Steering Mount
- Multi Position Height
- Steering Lock, making Adjusting Camber and Caster Easy
- Easy access to steering shaft for replacement
